MPC Filters

Dust Collection

Cleaning dust from your workplace’s air is vital to helping reduce employee exposure to potentially dangerous levels of contaminants. Proper dust collection can mean increased visibility and reduced costs for the cleanup and maintenance of your facility. It also helps you comply with health and air emission standards, reduces the possibility of causing a nuisance for your neighbors and can even help you recover valuable by-products from the air.

MPC Filters

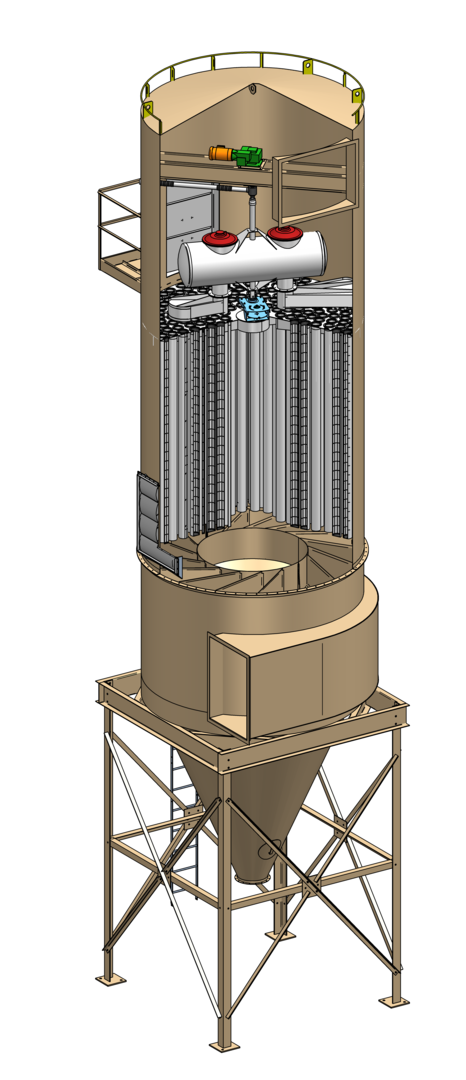

The Medium Pressure Cleaning ("MPC") Filters are the newest product in the Honeyville Dust Collection line. They feature a continuous on line cleaning system so you have the same CFM at the end of the day that you started with.

Some of the features include:

  • Bag Cleaning: Medium pressure back flush cleaning of bags
  • Cone: 67° standard cone section with bolt-on inspection cover
  • Inlet: Low pressure 110° involute inlet section with inner cone baffle and vortex breakers
  • Optional high entry inlet
  • Bags: 4.6" dia. 16 oz. polyester bags with mirror finish
  • Cages: 4.5" dia. galvanized wire cages
  • Bag Removal: No-tool top bag and cage removal
  • Construction: Welded and bolted construction using hot rolled carbon steel
  • Rupture type explosion relief panels
  • Finish: The interior and exterior are prime coated followed by a silicone alkyd industrial enamel paint on the exterior
  • Ladder: Galvanized service ladder and safety cage
  • Service Access: Service platform at hinged access door to walk-in plenum for filter inspection and service
The table below can be scrolled left and right to view all data.
Specifications for HMI MPC Filters
ModelDiaSq Ft ClothNo of BagsBag LengthO.A. Hgt
MPC-117-87'11331178'376"
MPC-117-107'141611710424
MPC-117-127'170011712472
MPC-153-98'14821538390
MPC-153-108'185215310438
MPC-153-128'222315312486
MPC-260-810'25192608429
MPC-260-1010'314826010477
MPC-260-1210'377726012525
MPC-361-812'34983618468
MPC-361-1012'437136110516
MPC-361-1212'524536112564
MPC-416-813'40314168482
MPC-416-1013'503741610530
MPC-416-1213'604441612578
MPC-494-814'47864948496
MPC-494-1014'598249410544
MPC-494-1214'717749412592
